NH NU NJ NUP NF N SL type Cylindrical Roller Bearing NUP307V with 35X80X21

Product Categories
Shenzhen Youmeite Bearings Co., Ltd.
Contact Now

NH NU NJ NUP NF N SL type Cylindrical Roller Bearing NUP307V with 35X80X21

  • 1
  • 2

Brand Name : UMT, NTN, NSK, FAG, INA, TIMKEN or OEM

Model Number : NUP307V

Certification : ISO9001:2008, ISO/TS16949, REACH, ROHS, MSDS, CQC

Place of Origin : Germany, France, Italy, Japan, Sweden, China etc.

MOQ : 10pieces

Price : US$ 1 - 50 / piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1,000,000 pieces per month

Delivery Time : 2-7 days after receiving the payments or deposit

Packaging Details : original package, Netural package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.

Type : Roller bearing

Structure : Cylindrical

Number of Row : Single row

Seals Type : OPEN

Precision Rating : ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

Material : Chrome steel, Stainless steel

Cage : Steel,Brass,Nylon

Clearance : C2,C0,C3,C4,C5 etc.

Vibration : V1,V2,V3

Service : OEM&ODM both available

Sample available : Yes

Manufacturer : Yes

ID : 35mm

OD : 80mm

Width : 21mm

Contact Now

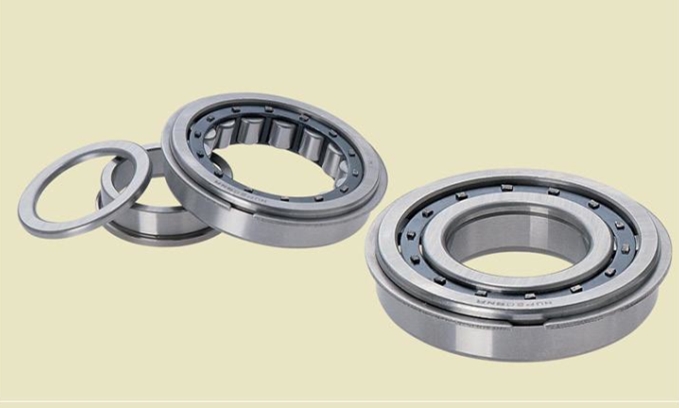

NH NU NJ NUP NF N SL type Cylindrical Roller Bearing NUP307V



NH NU NJ NUP NF N SL type Cylindrical Roller Bearing

Cylindrical roller bearings belong to separable bearings, with easy method of mounting and dismounting. They can be classified into single row, double rows and four rows.

As per different rib of the ring, single-row cylindrical roller bearings can be divided into N series,

NU series, NF series, NUP series and so on. Cylindrical roller bearings carry a very heavy radial loads.



NH NU NJ NUP NF N SL type Cylindrical Roller Bearing Features:



1. Roller and groove for line contact or repair referral contact, radial load capacity, is designed to withstand heavy load and impact load.
2. Small friction coefficient, suitable for high speed, limit rotational speed close to deep groove ball bearing.
3. N-type and NU type can axial movement and can adapt caused by thermal expansion or installation error and shell the shaft of relative location changes, can make free use of the bearing.
4. The hole of shaft or block the demand is higher, bearing processing after installation relative skewed to outer ring axis and kept under strict control, lest cause contact stress concentration.
5. Inner circle or their cups are separable, convenient in installation and removal.

NH NU NJ NUP NF N SL type Cylindrical Roller Bearing application:
Large and medium-sized motor, locomotives, spindle, internal combustion engines and generators, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.



Model Number NUP307V
Structure Cylindrical
Type roller bearing
ID 35mm
OD 80mm
Width 21mm
Seals Type Z, ZZ, RS, 2RZ, 2RS,OPEN
Number of Row Single Row
Material Chrome steel, Stainless steel
Cage Brass, Steel, Nylon
Vibration Level V1, V2, V3
Clearance C2, C0, C3, C4, C5 etc.
Precision Rating P0, P6, P5, P4, P2
Hardness 59-63HRC
Service OEM&ODM both available
Sample available Yes
Manufacturer Yes
Quality guaranteed Yes
Certificate ISO9001:2008, ISO/TS16949
Application/Function Steel Industry, Mining&Construction, Paper making Machinery,vibrating screens, shakers, conveyors
Other Service Design service, Buyer label service
Packaging Details Industrial Packing, Individual Boxed Packing, or OEM
Delivery Detail 2-7 days after receiving the payments or deposit


N/NJ/NF/NUP Type:



N typebearing housing washer no guard, both sides of the inner ring has guard. Can allow shaft relative bearing between the axial two direction of displacement. NU type of bearing's outer two guard, inner ring no guard. Can also allow shaft relative bearing between the axial two direction of displacement. Therefore, this kind of structure is suitable for use as a floating end bearing.



NJ typebearing housing washer two guard, the inner ring of the unilateral have guard. May have a certain amount of unilateral axial load.



NF typeof unilateral have outer rim, the inner ring of the two guard. Also can bear a certain amount of unilateral axial load. Therefore, this kind of structure is suitable for single direction as the axial location bearing with.



NUP typebearing outer is two guard, inner ring side band (fixed) single guard, and the other side is separable flat ring. May have a certain amount of two-way axial load.



Hot-sales for your reference.

Dimensions (mm) Basic Load Ratings(kN) Limiting Speeds(r/min) Weight (kg) NU Bearing Number
d D B rmin r1min Fw d2 Cr Cor Grease Oil
20 47 14 1 0.6 26.5 29.7 25.8 24 12000 16000 0.117 NJ204
25 52 15 1 0.6 31.5 34.7 27.5 26.8 11000 14000 0.14 NJ205
30 62 16 1 0.6 37.5 41.3 36 35.5 8500 11000 0.214 NJ206
35 72 17 1.1 0.6 44 48.3 46.5 48 7500 9500 0.311 NJ207
40 80 18 1.1 1.1 49.5 54.2 51.5 53 7000 9000 0.394 NJ208
45 85 19 1.1 1.1 54.5 59.2 58.5 63.8 6300 8000 0.45 NJ209
50 90 20 1.1 1.1 59.5 64.2 61.2 69.2 6000 7500 0.505 NJ210
55 100 21 1.5 1.1 66 70.9 80.2 95.5 5300 6700 0.68 NJ211
60 110 22 1.5 1.5 72 77.7 89.8 102 5000 6300 0.86 NJ212
65 120 23 1.5 1.5 78.5 84.6 102 118 4500 5600 1.08 NJ213
70 125 24 1.5 1.5 83.5 89.6 112 135 4300 5300 1.2 NJ214
75 130 25 1.5 1.5 88.5 94.6 125 155 4000 5000 1.32 NJ215
80 140 26 2 2 95.3 101.1 132 165 3800 4800 1.58 NJ216
85 150 28 2 2 100.5 107.1 158 192 3600 4500 2 NJ217
90 160 30 2 2 107 113.9 172 215 3400 4300 2.44 NJ218
95 170 32 2.1 2.1 112.5 120.2 208 262 3200 4000 2.96 NJ219
100 180 34 2.1 2.1 119 127 235 302 3000 3800 3.58 NJ220
110 200 38 2.1 2.1 132.5 141.3 278 360 2600 3400 5.02 NJ222
120 215 40 2.1 2.1 143.5 153 322 422 2200 3000 6.11 NJ224
130 230 40 3 3 156 165 258 352 2000 2800 7 NJ226
140 250 42 3 3 169 179 302 415 1800 2400 9.1 NJ228



Our other main products:
Deep groove ball bearing, Taper roller bearing, Ceramic ball bearing, Cylindrical roller bearing, Spherical roller bearing, Self-aligning bearing, Adapter sleeve, Angular contact ball bearing, Thrust ball bearing, Thrust roller bearing, Needle roller bearing, Spherical plain bearings, Linear bearing, Whell hub bearing, Special bearing
