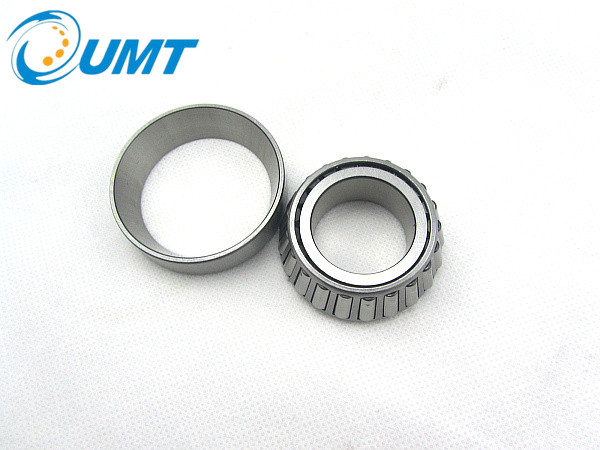

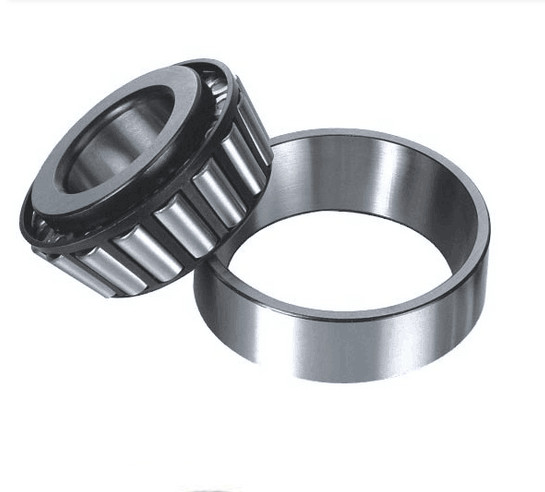

385-383 Cone And Cup Open Taper Roller Bearing Single Row For Agricultrual Machine
Quick Detail:
1. Structure: Taper Roller
2. Type: Roller
3. Brand Name: UMT, OEM customer brand
4. Bore Size: 55 mm
5. Outside Diameter: 100 mm
6. Model Number: 385/383
7. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
8. Seals Type: open
9. Number of Row: Single Row
10. Place of Origin: China
11. Thickness: 21 mm roller bearing
12. Net weight: 0.7kg
13. Material: Chrome steel, Stainless steel
14. Cage: Steel
15. Type: roller. taper roller bearing
16. Clearance: C0,C1,C2,C3,C4,C5 etc.
17. Vibration: V1,V2,V3
18. Service: OEM Service & Good Service
19. Sample available: Yes,
20. Manufacturer: Yes,
Description:
Tapered roller bearing can be separated from the inner ring with roller cage components together and the outer ring can be installed separately. As amended by the roller and raceway contact at the contact line can reduce the stress concentration. The tapered roller bearing can withstand large radial and axial load. Tapered roller bearings can only pass one-way axial load, axial load in the opposite direction to pass on another with symmetrical installation of tapered roller bearing.
Specifications:
| Taper roller bearing 55x100x21 mm |
| Model Number | 385/383 Taper roller bearig |
| Structure | taper roller bearing |
| Type | roller , taper roller bearing |
| Brand Name | UMT taper roller bearing |
| Inside Diameter | 55mm |
| Outside Diameter | 100mm |
| Width | 21mm |
| Net weight | 0.7kg |
| Seals Type | open |
| Number of Row | Single Row taper roller bearing |
| Place of Origin | China |
| Material | Chrome steel |
| Cage | Steel |
| Vibration Level | V1, V2, V3 |
| Clearance | C0, C1, C2, C3, C4, C5 etc. |
| Precision Rating | P0, P6, P5, P4, P2 |
| Hardness | 59-63HRC |
| Service | OEM or original brand |
| Sample available | Yes |
| Manufacturer | Yes |
| Quality guaranteed | Yes |
| Certificate | ISO9001:2008, ISO/TS16949 |
| Application/Function | Automotive, truck, tractors, construction machinery |
| Other Service | Design service, Buyer label service |
| Packaging Details | Industrial Packing, Individual Boxed Packing, or OEM |
| Delivery Detail | 2-7 days after receiving the payments or deposit |
Applications:
Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.
Taper roller bearings are the largest amount of single row circular cone roller bearings.
Single row circular cone roller bearings, which formed a circle and a group of tapered roller
Double row circular cone roller bearing outer ring (or in) is a whole.
Competitive Advantage:
1. Quality level: reach the same level as the Japanese and European bearings
2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)
3. Less coefficient of friction
4. High limiting speed
5. Large size range
6. variations of structure
